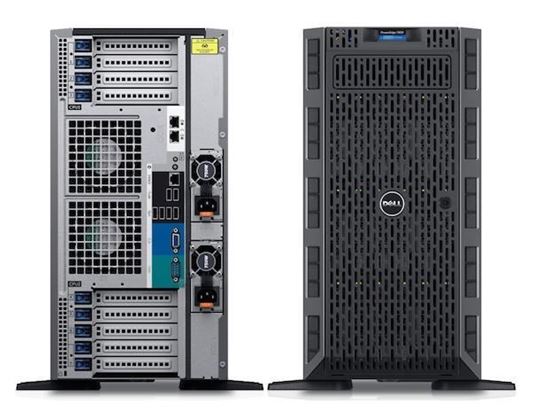

MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2603 V3


Số lượng:
Giá bán: 0 VND

MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2603 V3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2603 V3

MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2603 V3

  • (1) Intel® Xeon® E5-2603 v3 1.6GHz,15M Cache,6.40GT/s QPI,No Turbo,No HT,6C/6T (85W) Max Mem 1600MHz
  • 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
  • Hard Drive : None 3.5-inch
  • RAID PERC H730 12Gb/s SAS Adapter RAID Controller, 1Gb NV Cache (RAID 0,1,5,6,10,50,60)
  • On-Board Intel i350-AM2 Dual Port 1Gb LOM
  • iDRAC8 Express, integrated Dell Remote Access Controller, Express
  • 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD
  • DVD ROM, SATA, Internal
  • Dual, Hot-plug, Redundant Power Supply (1+1), 750W
  • Tower (5U rackable)
  • Warranty : 3 Year ProSupport and NBD On-site Service

Processor

  • Intel® Xeon® processor E5 2600 v4 product family

Operating System

  • Microsoft® Windows Server® 2008 R2
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    VMware® ESX®

Chipset

  • Intel C610 series chipset

Memory1

  • Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional)

  • Microsoft® Windows Server® 2008, with Hyper-V®
    VMware® ESXi
    Citrix XenServer

Storage

  • SAS, SATA, Near-line SAS, SSD, PCIe SSD
    Up to 4 optional Express Flash PCIe SSD
    Up to 144TB via 18 x 8TB 3.5” HDDs

Drive Bays

  • Internal hard drive bay and hot-plug backplane:
    Up to 8 x 3.5” SAS, SATA, Near-Line SAS, SSD, PCIe SSD drives with optional flex bay
    Up to 18 x 3.5” SAS, SATA, Near-Line SAS, SSD drives without optional flex bay
    Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
    Up to 32 x 2.5” SAS, SATA, Near-Line SAS, SSD drives with optional flex bay

Slots

  • Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
    Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
    Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
    Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
    Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
    Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
    Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
    Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)

RAID Controllers

  • Internal:
    PERC S130
    PERC H330
    PERC H730
    PERC H730P
    External:
    PERC H830

Network Controller

  • 2 x 1Gb

Communications

  • Broadcom® 5719 quad-port 1Gb NIC
    Broadcom 5720 dual-port 1Gb NIC
    Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
    Broadcom 57810 dual-port 10Gb Base-T network adapter
    Intel® Ethernet I350 dual-port 1Gb server adapter
    Intel Ethernet I350 quad-port 1Gb server adapter
    Intel Ethernet X540 dual-port 10GBASE-T server adapter
    Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
    Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
    Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
    Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
    Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
    Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
    Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
    QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
    QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
    Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
    Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

  • Titanium efficiency 750W AC power supply
    Gold efficiency 1100W DC power supply
    Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply

Availability

  • ECC memory
    Hot-plug hard drives
    Hot-plug redundant cooling
    Hot-plug redundant power
    iDRAC8
    Internal Dual SD Module
    Single Device Data Correction (SDDC)
    Spare Rank
    Tool-less chassis
    Support for high availability clustering and virtualization
    Proactive systems management alerts
    iDRAC8 with Lifecycle Controller

Graphics Card

  • Video Type :Integrated Integrated Matrox G200 with iDRAC8
    Video Memory: 16 MB shared with iDRAC8 application memory

    GPUs – Support for up to four optional 300W internal GPU processing accelerators

Chassis

  • Form Factor: 5U
    Height 443.5 mm (17.5 inch) with feet
               434.5 mm (17.1 inch) without feet
    Width:48.2cm (18.98”)
    Depth:75.09cm (29.56”)
    Max Weight:
    T630 full system with 2.5” HDD:
    Max 2.5"x16 (6 fans) 37.57Kg/82.75lb
    Max 2.5"x32 (6 fans) 40.55Kg/89.32lb
    T630 full system with 3.5” HDD:
    Max 3.5"x18 (6 fans) 49.65 Kg/109.36 lb

Management

  • Dell OpenManage portfolio of systems management solutions, including:
    OpenManage Essentials console
    iDRAC8 with Lifecycle Controller
