MÁY CHỦ DELL POWEREDGE R320 E5-2407V2 CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R320 E5-2407V2

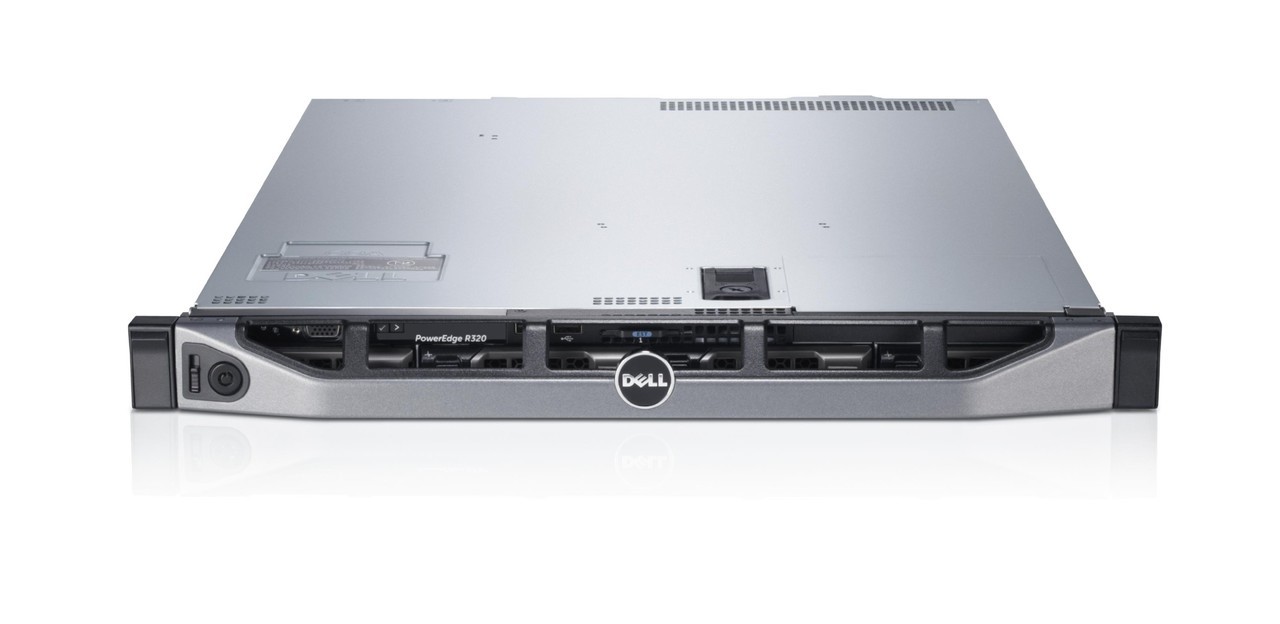

Dell PowerEdge R320 Server 3,5" Chassis (Hot-Plug HDD)
    * Intel Xeon 4-Core E5-2407v2 2.4GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1600 240-Pin DDR3 ECC RDIMMs (PC3 12800)
    * Non x 8 HDD SSD/SATA/SAS Enterprise 3.5"
    * Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
    * Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet
    * 1 x Power Supply 550W

MÁY CHỦ SERVER DELL POWEREDGE R320 E5-2407V2

Processor

• Intel^® Xeon^® processor E5-2400 and E5-2400 v2 product families
  Intel Xeon processor E5-1410
  Intel Pentium^® processor 1400 product family

  Processor sockets
  1

  Cache
  2.5MB per core; core options: 4, 6, 8, 10

  Internal interconnect
  Intel DMI 2.0

Operating System

• Microsoft® Windows Server® 2012
  Microsoft Windows Server 2012 Essentials
  Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux®
  Virtualization options:
  Citrix® XenServer®
  VMware® vSphere® ESXi ™
  Red Hat Enterprise Virtualization®

Chipset

• Intel C602

Memory¹

• Up to 192GB (6 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

• Maximum internal storage
  Up to 16TB

  Hard drives
  Hot-plug hard drive options:
  2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
  3.5” SATA, nearline SAS, SAS (15K)

  Cabled hard drive options:
  3.5” SATA, nearline SAS, SAS (15K)
  Self-encrypting drives available

Drive Bays

• Up to eight 2.5” hot-plug SAS, SATA or SSD
  Up to four 3.5" hot-plug SAS, SATA or SSD

Slots

• 2 PCIe slots:
  One x8 PCIe slot with x4 bandwidth, half-length, half-height
  One x16 PCIe slot with x16 bandwidth, half-length, full-height

RAID Controllers

• Internal controllers:
  PERC S110 (SW RAID)
  PERC H310
  PERC H710

  External HBAs (RAID):
  PERC H810

  External HBAs (non-RAID):
  6Gbps SAS HBA



Network Controller

• Embedded NIC:
  Broadcom® 5720 Dual Port 1Gb LOM



  I/O adapter options:



  1Gb Ethernet:
  Broadcom 5720 Dual Port 1Gb NIC
  Broadcom 5719 Quad Port 1Gb NIC
  Intel I350 Dual Port 1Gb stand-up adapter
  Intel I350 Quad Port 1Gb stand-up adapter



  10Gb Converged Ethernet:
  Brocade® BR1020 Dual Port 10Gb CNA
  QLogic® QLE8262 Dual Port 10Gb DA/SFP+
  Broadcom 57810S Dual Port 10Gb Base-T CNA
  Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA



  10Gb Ethernet:
  Intel X520 Dual Port 10Gb DA/SFP+ server adapter
  Intel X540 Dual Port 10Gb Base-T adapter



  FC8/FC4 HBA:
  QLogic QLE2460 4Gb Single Port FC HBA
  QLogic QLE2462 4Gb Dual Port FC HBA
  QLogic QLE2560 8Gb Single Port FC HBA
  QLogic QLE2562 8Gb Dual Port FC HBA
  Emulex® LPe-12000-E 8Gb Single Port FC HBA
  Emulex LPe-12002-E 8Gb Dual Port FC HBA
  Brocade 815 8Gb Single Port FC HBA
  Brocade 825 8Gb Dual Port FC HBA

Power

• Platinum efficiency, hot-plug, redundant 350W power supply
  Bronze efficiency, cabled 350W power supply
  Auto-ranging power supplies

Availability

• High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR^® compliant

Chassis

• Form factor
  1U rack

Management

• Remote management

  Basic management (default)
  iDRAC7 with Lifecycle Controller
  iDRAC7 Express (upgrade option), iDRAC7 Enterprise (upgrade option) 8GB or 16GB vFlash media (upgrade options)

  Systems management

  IPMI 2.0 compliant
  Dell OpenManage™ Essentials and Dell Management Console
  Dell OpenManage Power Center

  Dell OpenManage Connections:
  OpenManage Integration Suite for Microsoft^® System Center
  Dell plug-in for VMware^® vCenter™
  HP Operations Manager, IBM Tivoli^® Netcool^®, and CA Network and Systems Management

Rack Support

• ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

  ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

Regulatory

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
