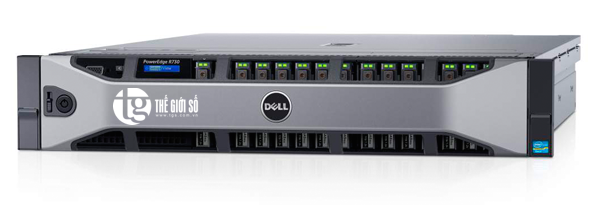

MÁY CHỦ SERVER DELL POWEREDGE R730 E5-2620V3

RACK: 2U

CPU: Intel® Xeon® E5

RAM: 8GB - 32GB

Số lượng:

Giá bán: 0 VND

Mua hàng

MÁY CHỦ SERVER DELL R730 E5-2620V3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ CHÍNH HÃNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE 2U R730 E5-2620V3 2.5″

Processor: 1x Intel Xeon Processor E5-2620v3 ( 6 cores, 12 threads, 2.40GHz, Turbo 3.2GHz, 15M Cache, 8GT/s QPI, 85W, LGA 2011-3 )

Memory: 1x 8GB RDIMM, 2133MT/s

Hard Disk: 1 x 600G SAS 10K RPM 2.5″ Hot-plug Hard Drive upto 16 HDD

Network Controller: Quad Port 1Gb

Raid Controller: PERC H730 Integrated RAID Controller, 1GB, Support RAID 0,1,5,6,10,50,60

Optical Drive: DVD-RW, SATA

Power Supply: 750W Hotplug Redundant Power (2/2)

Form Factor: Rack 2U

Product Description

Server DELL Poweredge 2U R730 E5-2620v3 được thiết kế tối ưu cho môi trường doanh nghiệp yêu cầu khắt khe nhất, đặc biệt phù hợp với mối trường doanh nghiệp vừa và nhỏ ( SMB ) với giá thành rất hợp lý. Server DELL Poweredge 2U R730 E5-2620v3 chính hãng kèm theo dịch vụ sau bán hàng tốt nhất từ SMB giúp quý khách hàng có được sự hài lòng cao nhất!

MÁY CHỦ SERVER DELL 2U R730 E5-2620V3 2.5″

Processor : 1 x Intel® Xeon® E5-2620v3 (6 cores, 12 threads 2.4GHz, turbo 3.2GHz, 15M Cache, 8GT/s QPI, 85W, LGA 2011-3 )

* Dual 2011-3 pins Socket
* Supports up to two Intel® 64-bit Xeon® processor(s) Intel® Xeon ® processor E5-2600v3 series

Memory : 1 x 8GB DDR4 2133MT/s 288-Pin ECC RDIMMs (PC4-17000)

Up to 768GB (24 DIMM Slots): 2GB/4GB/8GB/16GB/32GB DDR4 up to 2133MT/s

Hard Drive : 1 x 600G SAS 10K RPM 2.5″ Hot-plug Hard Drive

Support: SAS, SATA, Near-line SAS SSD: SAS, SATA
Internal hard drive bay and hot-plug backplane:
16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives”
8 x 3.5” – up to 48TB via 6TB hot-plug NL SAS hard drives”

Storage Controller : Dell™ PERC H730 Integrated RAID Controller with 1GB NV Flash Cache Support SAS3.0, SATA3 Hardware RAID 0, 1, 5, 6, 10, 50, 60 upto 32 devices

Network Controller : Integrated Quad ports Broadcom 5720 1Gb card

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T IEEE 802.3 standards, RJ45 output

Optical Drive : DVD-RW

Power Supply : Dual, Hot-plug, Redundant Power Supply (1+1), 750W

PCI-Express Slots :
Slot configuration #1:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Dedicated RAID card slotSlot configuration #2:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card slot

Operating System
Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Availablity:
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller

Management:
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
iDRAC Direct
iDRAC Quick Sync
OpenManage Mobile

SMB

Server DELL Poweredge 2U R730 E5-2620v3

OVERVIEW

Tackle almost any workload

The incredible versatility of the Server DELL Poweredge 2U R730 E5-2620v3 server delivers outstanding functionality in just 2U of rack space. With the combination of powerful processors, large memory, fast storage options and GPU accelerator support, the R730 performs exceptionally well in a number of demanding environments.

Virtualization and cloud applications

With the Intel® Xeon® processor E5-2600 v3 product family and up to 24 DIMMs of DDR4 RAM, the R730 has the processing cycles and threads and large memory footprint necessary to deliver more, larger and higher-performing virtual machines for data centers and cloud platforms.

Highly scalable storage, with up to sixteen 12Gb SAS drives and the high-performance 12Gb PowerEdge RAID Controller (PERC9), can greatly accelerate data access for your virtualized environment. In addition, the R730 can take advantage of optional Dell Fluid Cache for SAN and SanDisk DAS Cache application acceleration technology for even faster data access.

VDI and HPC

The option for up to two 300W dual-width accelerators/GPUs (choose from Intel® Xeon Phi™, NVIDIA® Tesla® and AMD FirePro™) supports environments that require processing acceleration, including graphics-intensive virtual desktop infrastructure (VDI) implementations, such as CAD/CAM and other research and development applications. Seven PCIe Gen3 expansion slots plus a dedicated slot for a RAID controller further enhance IO flexibility to help make the R730 an ideal compute node for IT as a service (XaaS) providers as well as high-performance computing (HPC) and medical-imaging solutions.

Reliable business processing and decision support

The popular-sized 2S/2U R730 can be easily configured as a reliable, general-purpose server for business-critical applications, with scale-out storage, automated management and high-availability features, such as:

Redundant power supply units (PSUs)
Hot-plug and swappable PSUs, HDDs and fans
Dual SD card option for failsafe hypervisors

Simplify and automate your IT management tasks

Manage your data center servers the way you want: individually, collectively, in-person, remotely or with your smartphone — it’s your choice. Consistent administration and 3rd-party integration ensure seamless management of PowerEdge servers.

Simplify administration of PowerEdge servers with the embedded intelligence of the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller and with the robust, timesaving management features of the entire Dell OpenManage portfolio.

Agent-free management from iDRAC8 with Lifecycle Controller offers real-time monitoring for the server and internal storage devices. It also monitors server health, multiple internal parameters and system performance without requiring agents to be installed in the server operating system — agents which could require additional upkeep and consume valuable CPU time.

Zero-touch automated deployment discovers and auto-configures Dell servers by using configuration files stored in designated locations on an internal network, which can reduce setup time and manual entry errors. Administrators can simply rack, cable and walk away.

Automated server updates synchronize servers to firmware baselines stored at designated locations on an internal network to simplify firmware updates.

The Tech Support Report, automatically maintained by iDRAC, is a continuously updated health and status report that monitors over 5,000 key system parameters and can help cut time needed to identify and resolve server issues.

Monitor and manage from anywhere

Administer systems from your smartphone, laptop or at the system with both local and remote management options.

Use your smartphone with the OpenManage Mobile app to securely monitor remote systems, or connect to a server via Near Field Communications (NFC) to access a status report and logs using the iDRAC Quick Sync feature.
Use a USB memory stick to upload configurations files for BIOS, iDRAC, PERC, LAN on motherboard (LOM) and network interface card (NIC) updates with the iDRAC Direct feature.
Connect a laptop via USB to a specific server’s embedded iDRAC8 management-console interface for robust “at the system” management.

Accelerate IT service deployment

Streamline infrastructure provisioning, speed up workload deployment and simplify IT service delivery through the unified console and highly intuitive user interface of Active System Manager. Enhanced for the latest generation of PowerEdge servers, it features:

Template-based server and IO configurations, identity management and service migration capabilities
Fast workload deployment with an expanding out-of-box template library
Cloud enablement with support for infrastructure as a service (IaaS) and platform as a service (PaaS), including Red Hat and VMware solutions

Stocking the future-ready data center

With high-performance processing, large memory capacity and innovative local storage options offering greater scalability throughout the portfolio, the latest generation of PowerEdge servers meets your needs today, with the hardware, headroom and simplified management to adapt as your workloads demand.

Dell ProSupport

Choose Dell’s premium support service, ProSupport, for 24/72 direct telephone and online access to advanced-level technicians based in your region. Whether you have one office or hundreds around the world, protect your investments with this simple yet flexible approach.
