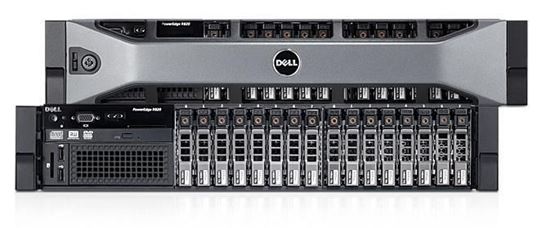

MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 V2
RACK:
2U
CPU:
Intel® Xeon® E5
RAM:
8GB - 32GB
Số lượng:
Giá bán: 0 VND
MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 V2 CHÍNH HÃNG, GIÁ RẺ tại THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 v2
- 2x Intel® Xeon® E5-4603 v2 2.20GHz, 10M Cache, 6.4GT/s QPI, No Turbo, 4 Core, 95W, Max Mem 1333MHz
- 16GB( 2 x 8GB ) RDIMM, 1600MT/s, Low Volt, Dual Rank, x8 Data Width
- Hard Drive : None 2.5-inch
- PERC H710 Integrated RAID Controller, 512MB NV Cache, Mini-Type (RAID 0, 1, 5, 10)
- Broadcom 5720 QP 1Gb Network Daughter Card
- 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
- Dual, Hot-plug, Redundant Power Supply (1+1), 750W
- Rack 2U, Dell Friction Rail Kit
- Warranty : 3 Year ProSupport and NBD On-site Service
MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 V2
Processor
- Intel® Xeon® processor E5-4600 product family
Processor sockets:
4
Internal interconnect:
2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
Cache:
2.5MB per core; core options: 4, 6, 8
Form factor:
2U rack
Operating System
Chipset
- Intel C602
Memory1
- Up to 3TB (48 DIMM slots) 4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s
Storage
- Maximum internal storage
16TB
Drive Bays
Slots
- 7 PCIe slots:
Two x16 half-length, full-height
One x8 half-length, full-height
Three x8 half-length, half-height
One x8 half-length, full-height for the RAID controller
RAID Controllers
- Internal controllers:
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA
Communications
- Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)
Power
- Titanium efficiency, hot-plug redundant 750W power supply
Platinum efficiency, hot-plug redundant 750W or 1100W power supplies
Auto-ranging power supplies
Availability
- High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug
redundant fans; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support;
ENERGY STAR® compliant, extended power range; Switch Agnostic Partitioning (SWAP)
Management
- Remote management:
iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller
8GB or 16GB vFlash media (upgrade options)
Systems management:
IPMI 2.0 compliant
Dell OpenManage™ Essentials
Dell OpenManage Power Center
Dell OpenManage Connections:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter™
• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Rack Support
- ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks.
