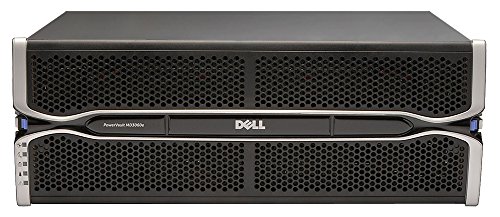

MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline SAS


Số lượng:
Giá bán: 0 VND

MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline SAS CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline SAS



MÁY CHỦ SERVER DELL PowerVault MD3060e 3.5" Storage Advanced Nearline



  • Condition: Brand New
  • Hard Drive: 40TB (20 x 2TB) 7.2K 6Gb/s NL SAS 3.5" HDDs
  • Cables: 2 x 0.5M Mini-SAS to Mini-SAS Cables

THÔNG TIN NỔI BẬT

A 60-drive expansion enclosure specifically designed for the MD3 dense array series, the MD3060e dense enclosure is an eBOD (expansion bunch of disks), which operate in the same fashion as a JBOD (just a bunch of disks). There are two enclosure management modules (EMM) that allow for management of the expansion drives via the MD3 Dense Array controllers.

  • Up to 2 expansion enclosures can be daisy chained to an MD3 Series array
  • Options for mix and match of 3.5", 2.5", SED or SSD hard drives
  • Add 2 MD3060e enclosures (max) for up to 180 drives in just 12U, providing up to 1.8PB of raw capacity
  • Dual EMM controller option only, using the enclosure management modules
Software
OS Support
Microsoft® Windows Server® 2012 R2,
Red Hat® Enterprise Linux® 6.5,
Ubuntu® 12.04 LTS, and Debian 7.4
Nexenta™
Storage
Drives
60
Controllers
Dual Enclosure Management Modules (EMMs)
HBA
Requires a two port host bus adapter (HBA).
Scalability
Expansion capabilities
Up to 4 dense enclosures behind a single server (240 HDDs)
Performance
Drive type
3.5" and 2.5" SAS, NL-SAS, SSD, SED
Maximum HA host
2
Maximum Usable Capacity
3.5”drive capacity
7.2K RPM NL-SAS: 500GB, 1TB, 2TB, 3TB, 4TB1, 6TB, 8TB, 10TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU);
800GB, 1.6TB (RI) (available with 3.5” HDD carriers)
2.5”drive capacity
15K RPM SAS: 146GB1, 300GB1, 600GB1
10K RPM SAS: 146GB, 300GB1, 600GB1, 900GB1, 1.2TB1, 1.8TB
7.2K RPM NL-SAS: 500GB1, 1TB1, 2TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
3.5” 10K and 15K HDDs are not supported on the dense model
Connectivity
6Gb SAS
Server Compatibility
Dell PowerEdge R630, R730 and the R730xd servers
Chassis
Form factor
4U rack enclosure
Physical dimensions
(height x width x depth)177.8mm (7.0”) x 482.6mm (19.0”) x 825.5mm (32.5”)
Maximum weight
105.20 kg (232.0 lb)
Power
AC: 1755W
Management
Server controller dependent
Environmental
Heat dissipation (max)
5988 BTU/hr
Voltage
220V AC, auto ranging
Frequency range 50/60Hz
Temperature
Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
Relative humidity
Operating: 10% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude
Operating: -30.5m to 3000m (-100 ft to 9,840 ft)
NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
