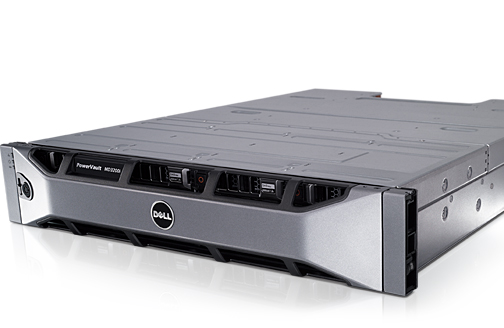

MÁY CHỦ SERVER DELL POWERVAULT MD1200 DAS STORAGE
Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND
MÁY CHỦ SERVER DELL POWERVAULT MD1200 DAS STORAGE CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWERVAULT MD1200 DAS STORAGE
Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K and 15K rpm and SAS Solid State Drives (SSDs)
MÁY CHỦ SERVER DELL POWERVAULT MD1200 DAS STORAGE
| Drives | Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K and 15K rpm and SAS Solid State Drives (SSDs) |
| Drive performances and capacities | 3.5” 6Gbps SAS: HDD 15K – 300GB, 450GB, 600GB HDD 7.2K – 1TB, 2TB, 3TB, 4TB HDD 7.2K NL-SAS 512e – 6TB, 8TB 2.5” 6Gbps SAS with 3.5” carrier: HDD 10K – 300GB, 600GB, 900GB, 1.2TB HDD 10K 512e– 1.8TB SSD – 400GB mainstream SLC SSD – 200GB, 800GB value SLC SSD – 800GB RI MLC SSD – 200GB, 400GB WI SLC 2.5” 12Gbps SAS with 3.5” carrier: 7.2K HDD NL-SAS 512e – 2TB SSD – 200GB, 400GB, 800GB, 1.6TB MU MLC SSD – 200GB, 400GB, 800GB WI MLC SSD – 800GB, 1.6TB RI MLC |
| Maximum Capacity (per enclosure) | Up to 96TB when using 12 x 8TB NL-SAS 3.5" HDDs |
| Expansion Capabilities | PERC H810 Host-RAID adapter enables expansion to 8 enclosures (4 enclosures per port) |
| Connectivity | Support for the following configurations: Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path) Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling) Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 5 and a separate connectivity to drives 6 through 11. |
| Management | 2 Enclosure Management Modules(EMM) provide redundant enclosure management capability |
| Power | Two fully redundant power supplies; supports DC power Wattage: AC - 600 W; DC – 700 W Heat dissipation: AC - 2047BTU/hr; DC - 2388 BTU/hr Voltage: 100-240 VAC, auto sensing; 48V DC Frequency: 50/60 Hz Amperage: 8.6 A at 100 V, 4.3 A at 240 V Available Drive Power (per slot) Supported drive power consumption (continuous): up to 1.16 A at +5V up to 1.6 A +12V |
| Chassis | Height 8.7cm (3.43 inches) Width 48.2cm (18.98 inches) Depth 59.4 (23.39 inches) Weight 28.39 kg (62.6 lb) (maximum configuration) 8.84 kg (19.5 lb) (empty) |
| Environmental Operating Conditions | Temperature: Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour Supports Fresh Air cooling, up to 35 degrees Celsius Relative humidity: Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing) Altitude: Operating: -16 to 3048 m (-50 to 10,000 ft) Storage: -16 to 10,600 m (-50 to 35,000 ft) |
| Operating System | Refer to RAID Card for details on supported Operating Systems: PERC H810 |
